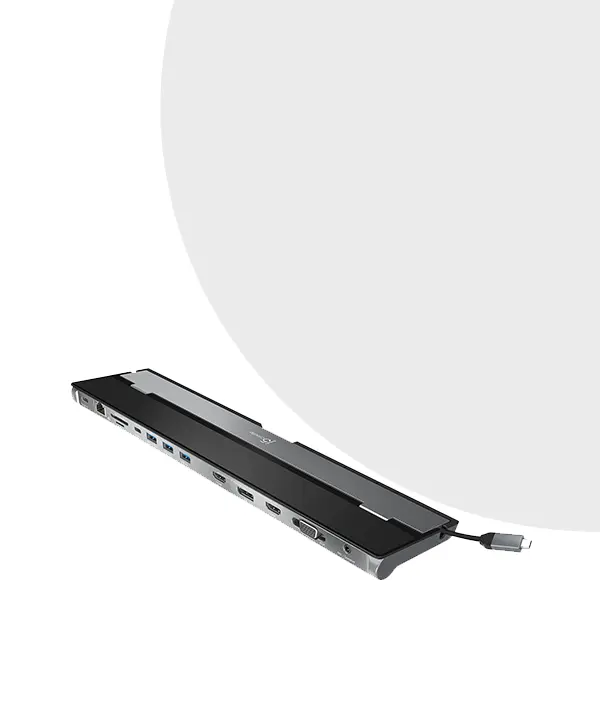

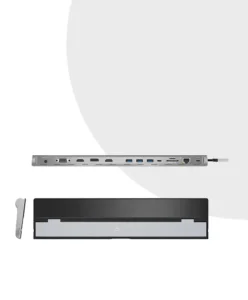

j5create JCD543 USB-C Triple Display Docking Station

• • TRIPLE DISPLAY FLEXIBILITY & ADAPTABILITY
    • Create a triple-monitor setup with 4K HDMI™, 1080p VGA, and 4K DisplayPort™ outputs and together with your laptop display, you can have a maximum of 4 displays. Available display combinations:
      • HDMI™ + VGA + DisplayPort™
      • HDMI™ + VGA + HDMI™

• • USB-C™ 100W POWER DELIVERY
    • With the attached USB-C™ cable, the dock will power and charge power-hungry laptops, with up to 100W Power Delivery and power your connected peripherals when it’s used with a USB-C™ power adapter.

• •  MULTIPLE CONNECTIONS
    • To support all of your USB™ peripherals, the dock provides a total of four USB™ 3.0 ports (1 USB-C™ and 3 USB™ Type-A ports), a Gigabit Ethernet port, SD™/microSD™ card slots and a combo audio jack.

• • BC 1.2 FAST CHARGING
    • One of the USB™ 3.0 Type-A ports is a fast-charge port, so you can charge your mobile devices faster than you can from a standard USB™ port.

• CUTTING-EDGE DESIGN
  • Advanced heat-eliminating design is the perfect solution to expand your laptop into a full-sized workstation without the worry of overheating and with the double-sided cable storage compartment, you can place the cable any way you like.

COMPATIBILITY

System Requirements
Microsoft® Windows® 10 or later macOS® 10.14 or later Intel® HD Graphics 505 / AMD Radeon™ R5 Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0 Please refer to the manufacturer of your hardware for more information on your device Extended Monitor System Requirements: (Higher processor recommended for multiple displays) One 2K (2048 x 1152 @ 60 Hz) full-screen video playback CPU: Intel® Core™ i5 Quad Core RAM: 4 GB memory or higher Two 2K (2048 x 1152 @ 60 Hz) full-screen video playback CPU: Intel® Core™ i7 Quad Core RAM: 8 GB memory or higher
Special Notes
Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in. A 4K-capable display is required for obtaining the 3840 x 2160 resolution If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited The dock can connect to a USB-C™ port that doesn’t support Power Delivery but it will not pass power through the connected device If you are using a high-powered USB™ device, attach a USB-C™ power adapter to the power delivery port for optimal performance To ensure files copy completely, do not remove the USB-C™ power adapter while copying files. For maximum performance, use a computer and USB-C™ power adapter equipped with PD 3.0 We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the USB™ hub at a time

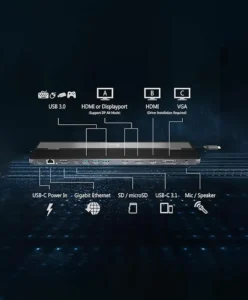

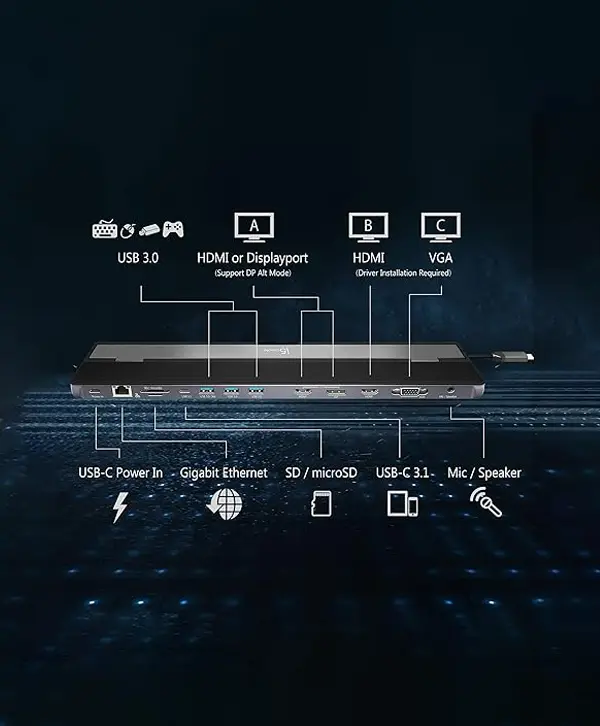

13 ports in one sleek design for all your needs

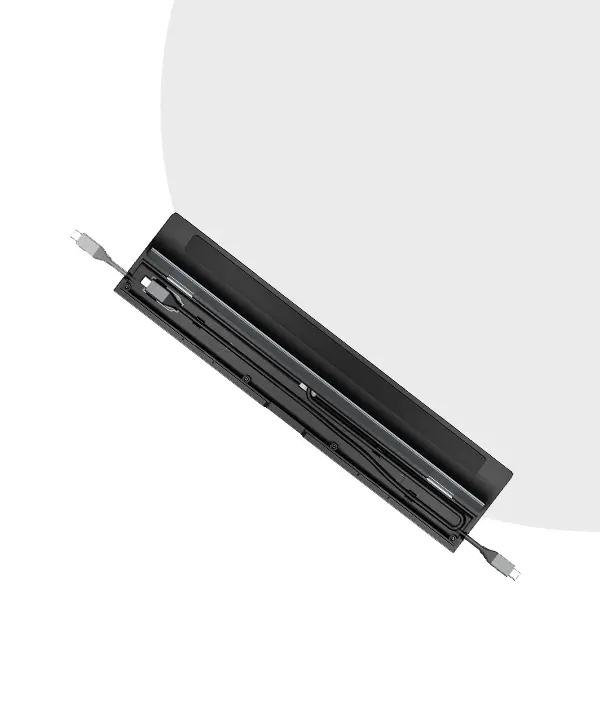

Double Sided Cable Storage Compartment | Place the cable anyway you like
