ASUS Prime B860M-A WiFi-CSM Motherboard (Intel B860 chipset, Micro-ATX, LGA 1851)
ASUS PRIME B860M-A WIFI-CSM
- Form FactorMicro-ATX (mATX)
- Socket & ChipsetIntel LGA 1851 / Intel B860
- Memory Support4 x DDR5 DIMM (up to 256 GB, 8666+ MT/s OC)
- PCIe Slots1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x1
- M.2 Storage2 x M.2 slots (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4)
- SATA Ports4 x SATA 6Gb/s
- Network & Wireless2.5Gb Ethernet + Wi-Fi 6E & Bluetooth 5.3
- Display Outputs1 x HDMI, 2 x DisplayPort, 1 x USB-C (DP Alt mode)
- Rear USB Ports8 ports (1 x 20Gbps Type-C, 1 x 10Gbps Type-A, 2 x 5Gbps, 4 x USB 2.0)
- Special FeaturesASUS CSM (Corporate Stable Model), Aura Sync RGB
Description
ASUS PRIME B860M-A WIFI-CSM (Intel B860 chipset, Micro-ATX, LGA 1851) Motherboard PRICE IN BANGLADESH MC SOLUTION BD
| Category / Specification | Detailed Information |
| Model |
ASUS PRIME B860M-A WIFI-CSM
|
| CPU Socket |
Intel® Socket LGA1851
|
| Supported Processors |
Intel® Core™ Ultra Processors (Series 2); Supports Intel Turbo Boost 2.0 & Turbo Boost Max 3.0
|
| Chipset |
Intel® B860 Chipset
|
| Power Delivery (VRM) | 7(80A) + 1(80A) + 1(80A) + 1(80A) Power Stages with Digi+ VRM control and enlarged VRM heatsinks |
| Memory Slots | 4 x DIMM slots, Dual Channel Architecture |
| Memory Capacity | Up to 256 GB |
| Memory Type & Speed | DDR5, up to 8666+ MT/s (OC); Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) support |
| Memory Profiles | Intel® Extreme Memory Profile (XMP), ASUS Enhanced Memory Profile III (AEMP III), DIMM Fit |
| Expansion Slots (CPU) |
1 x PCIe 5.0 x16 SafeSlot (supports x16 mode)
|
| Expansion Slots (Chipset) |
|
| M.2 Storage Slots |
2 x M.2 slots total:
|
| SATA Storage | 4 x SATA 6Gb/s ports |
| RAID Support | Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10 |
| Graphics Outputs |
|
| Ethernet (LAN) | 1 x Realtek 2.5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth |
Wi-Fi 6E (2.4/5/6 GHz bands) + Bluetooth 5.3
|
| Audio |
|
| Rear USB Ports (8 total) |
|
| Front / Internal USB Headers (5 ports) |
|
| Cooling & Fan Headers |
|
| RGB Headers |
|
| Internal Connectors / Headers |
|

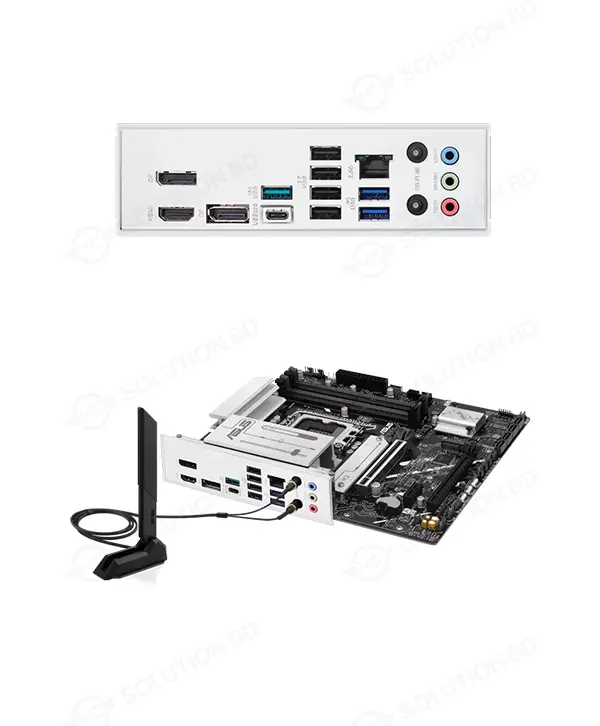

| Rear Panel I/O Ports |
|
| Special Hardware Features | ASUS 5X PROTECTION III, Stainless-Steel Back I/O, SafeSlot Core+, Q-LED Core diagnostics, M.2 Heatsink |
| Commercial Program (CSM) |
ASUS Corporate Stable Model (CSM) with ASUS Control Center Express, up to 36-month supply lifecycle
|
| BIOS | 256 (128+128) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Supported OS | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| Form Factor | Micro-ATX (mATX): 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
