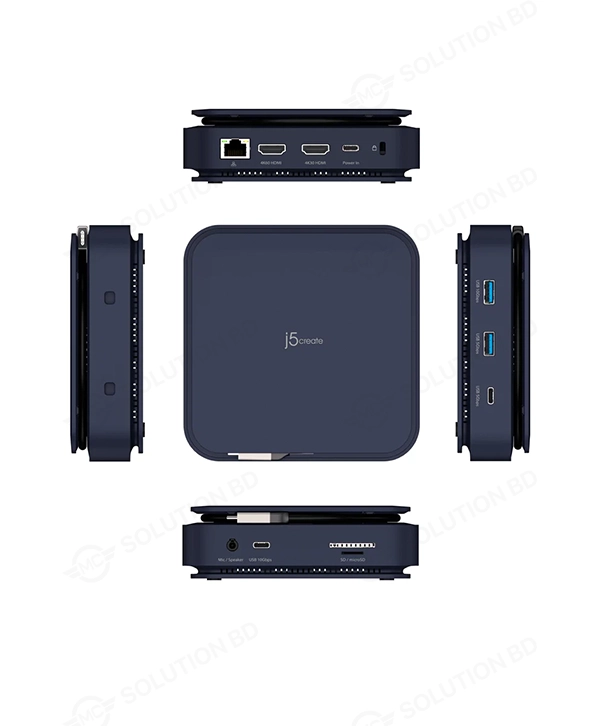

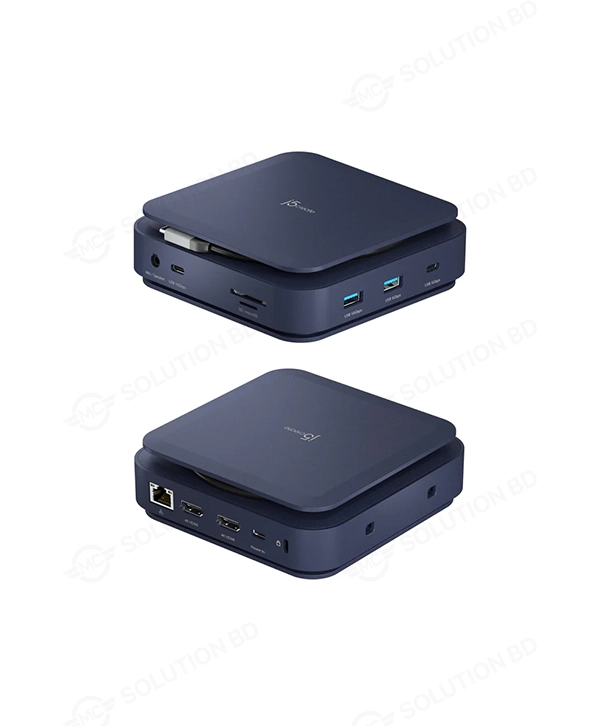

j5create JCD3196 Type-C Dock Dual 4K HDMI 11-in-1 Functions
Original price was: 16,900৳ .12,500৳ Current price is: 12,500৳ .
j5create JCD3196 Type-C Dock Dual 4K HDMI
- 11-in-1 Functions
- Supports dual 4K HDMI™ (4K@60Hz + 4K@30 Hz)
- Supports Power Delivery 3.1 140W power in. Offers up to PD 130W pass-through charging to host.
- Two USB™ 10Gbps and two USB™ 5Gbps ports for connecting peripherals
- Reliable network connectivity via the Gigabit Ethernet
- Includes SD™/microSD™ card reader
- Cable storage compartment
- Security lock
Description
j5create JCD3196 Type-C Dock Dual 4K HDMI 11-in-1 Functions
| Hardware | |
|---|---|
|
audio supported
Yes
host connector
1 – USB-C® Male (PD 3.1 130W, 28V / 4.65A) network interface
Yes
ports
1 – USB-C® PD-in PD3.1 140W (28V/5A) power source
Bus-powered or self-powered
video output
2- HDMI™ Female warranty
2 Year Limited
|
|
| Performance | |
|
audio channel
2.1 via HDMI™
compatible networks
10/100/1000 Mbps
displays supported
2 max data transfer rate
10Gbps max display refresh rate
60 Hz max display resolution
3840 x 2160 |
|
| Power | |
|
input current
Up to 5A
input voltage
Up to 28V
output current
Up to 4.65A
output voltage
Up to 28V
power consumption
≤ 900 mA
power delivery
Up to 140W via USB-C®
|
|
| Physical Specifications | |
|
cable length
2.28 ft (69.5 cm)
color
Dark Blue
enclosure type
Plastic
operating humidity
< 85% non-condensing
operating temperature
30 to 116°F (-1 to 41°C)
product depth
Body: 5.12 in. (130 mm)
Holder: 3.15 in. (80 mm) product height
Body: 1.71 in. (43.5 mm)
Holder: 1.3 in. (33 mm) product weight
Body: 14.7 oz (416 g)
Holder: 0.8 oz (22 g) product width
Body: 5.12 in. (130 mm)
Holder: 5.12 in. (130 mm) storage humidity
< 85% non-condensing
storage temperature
0 to 155°F (-17 to 68°C)
|
|
| Package Contents | |
|

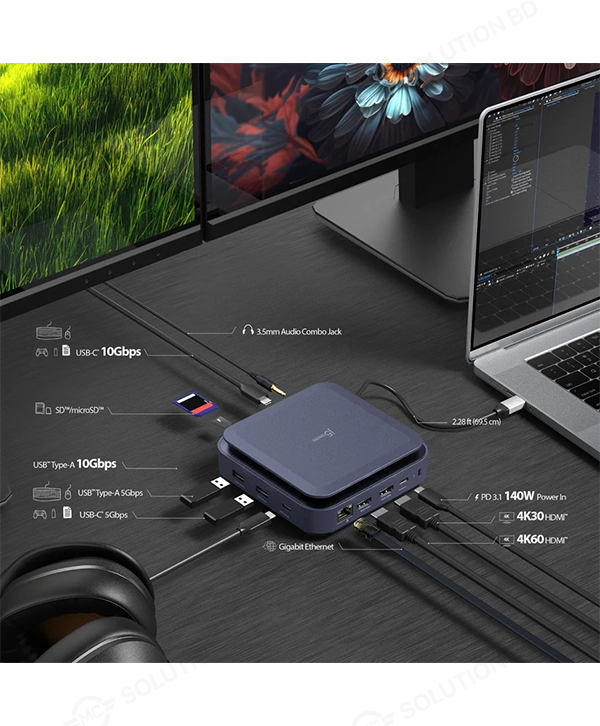

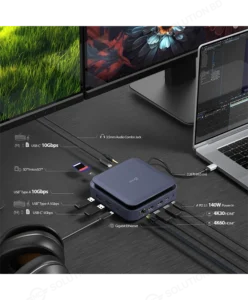

j5create JCD3196 Type-C Dock Dual 4K HDMI Versatile 11-in-1 expansion, excellent companion for home and office
Easily add dual 4K display, extend your display area and maximize productivity
Break free from the limitation, effortlessly connect two additional displays to your M1/M2/M3 MacBook® or Windows® laptop
Exclusive PD 3.1 power distribution technology ensures optimal PD 3.1 power utilization, even when used with computers supporting only PD 3.0
Work at a much faster yet easier pace. Delivers twice the performance when compared to USB™ 3.1 docks
Two USB™ 10Gbps and two USB™ 5Gbps ports for transferring data at ultra high speeds and connect various peripherals
Supports a super fast Gigabit network. Ensures a stable and dependable internet connection
Integrate a high speed SD™ 3.0 card reader, allow you transfer videos, images and files from a SD™/microSD™ card conveniently
A built-in cable organizer for easy cable management

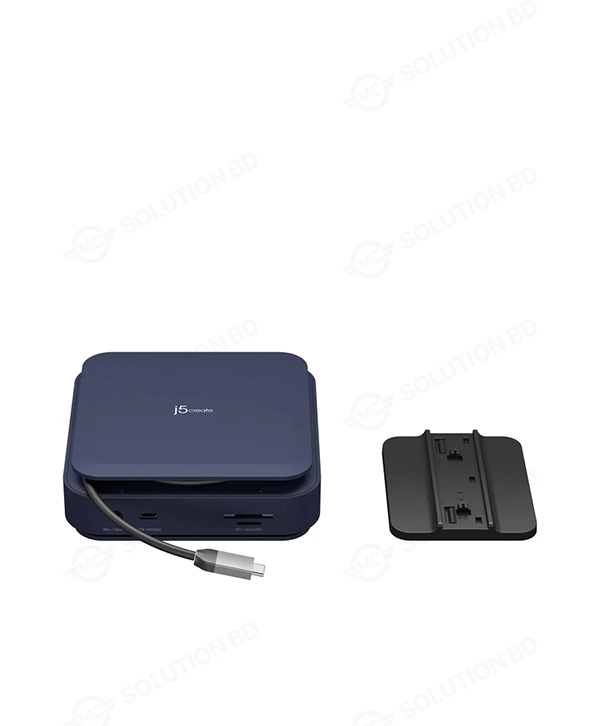

Includes a holder for vertical use, freeing up desk space for enhanced efficiency
Universal Compatibility
Supports Windows® 11/10 or later and macOS® 10.14 or later
Enhance your workspace with this compact yet robust docking station
