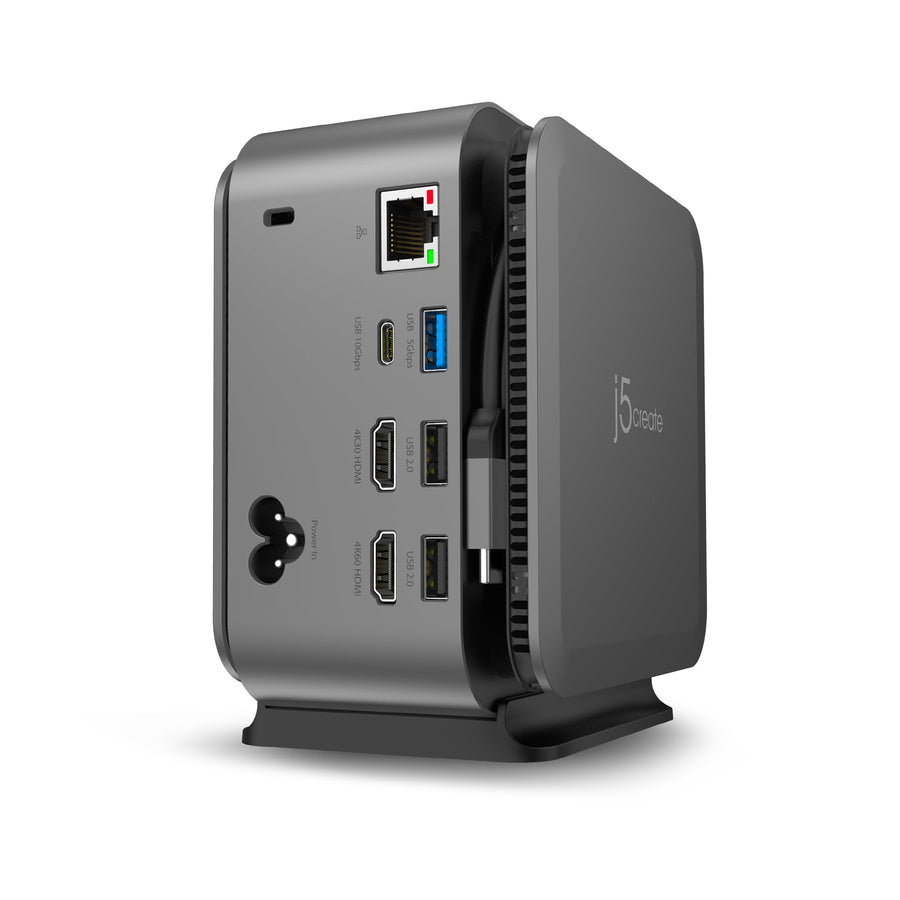

j5create JCDP4140 Docking Station

Dual 4K Powerbase Docking Station with Cable Management
Supports dual 4K HDMI™ (4K@60Hz + 4K@30Hz)
Built-in 163W power adapter supports AC 100-240V, 50/60Hz
Reliable network connectivity via the Gigabit Ethernet port
Three USB™ 10Gbps, one USB™ 5Gbps ports and two USB™ 2.0 ports for connecting peripherals
Two USB-C® PD charging ports (27W & 18W) for tablets and smartphones
SD™/microSD™ card reader
Cable management storage compartment
Security lock
Combo 3.5 mm Audio Jack

Category: Hubs and Docks

Description
Reviews (0)

Description

j5create JCDP4140 Dual 4K Powerbase Docking Station with Cable Management

Hardware

audio supported
Yeshost connector
1 – USB-C® Male (PD 3.0 100W, 20V/5A)network interface
Yesoutput
27W port : 5V/3A; 9V/3A 18W port : 5V/3A; 9V/2A

ports
1 – USB-C® Host 10 Gbps/DP™ Alt Mode/PD 100W (20V/5A)
1 – USB-C® pure charging PD 3.0 27W (9V/3A)
1 – USB-C® 10 Gbps 4.5W
1 – USB-C® 10 Gbps with PD 18W (9V/2A)
2 – USB™ Type-A 5 Gbps & 10 Gbps 4.5W
2 – USB™ Type-A 2.0 2.5W
1 – Combo 3.5 mm Audio Jack
1 – HDMI™ (USB™ display max resolution 4K@30Hz)
1 – HDMI™ (DP™ Alt max resolution 4K@60Hz)
1 – RJ45 Gigabit Ethernet
1 – SD™/microSD™ 3.0

power source
Self-powered

video output
2 – HDMI™ Female

warranty
2-year Limited

Performance

audio channel
2.1 via HDMI™compatible networks
10/100/1000 Mbpsdisplays supported
2max data transfer rate
10 Gbps

max display refresh rate
60 Hz

max display resolution
3840 x 2160

Power

input current
AC power 0.83~2.2Ainput voltage
AC 100-240Voutput current
Up to 5Aoutput voltage
Up to 20V

power consumption
≤ 900 mA

power delivery
Up to 100W via USB-C®

Physical Specifications

cable length
2.28 ft (69.5 cm)color
Space Greyenclosure type
Plasticoperating humidity
< 85% non-condensing

operating temperature
30 to 116°F (-1 to 41°C)

product depth
Body: 5.13 in. (130.4 mm) Holder: 3.02 in. (76.8 mm)

product height
Body: 3.1 in. (78.75 mm) Holder: 0.54 in. (13.7 mm)

product weight
Body:1.67 lbs. (759 g) Holder: 0.07 lbs. (32 g)

product width
Body: 5.13 in. (130.4 mm) Holder: 3.93 in. (100 mm)

storage humidity
< 85% non-condensing

storage temperature
0 to 155°F (-17 to 68°C)

Package Contents

1x JCDP4140 Dual 4K Powerbase Docking Station with Cable Management
Detachable 3 Pin Power Cord (*Depends on selling area):US – 47.24 in (120 cm)
AU/EU/UK – 39.37 in (100 cm)1x Quick Installation Guide (QIG)

System Requirements

Operating Systems:Windows® 10 or later
macOS® 10.14 or laterAvailable USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0/3.0 (please refer to the manufacturer of your computer for more information about your device)
The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz

Special Notes

Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
For the computer to charge the computer must support Power Delivery.

14-in-1 Massive Connectivity

Unleash the ultimate workstation with 100W PD charging, 10 Gbps speeds, Dual 4K display support, and a complete array of USB-C, USB-A, Gigabit Ethernet, and media ports.
